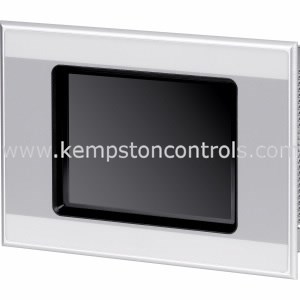

Moeller - XV-442-57CQB-1-10 TOUCH PANEL, IR, 24 V DC, 5.7", STNCOLOR, ETHERNET, RS232, CAN
XV44257CQB110 / Y7-139892
Manufacturer: Moeller
TOUCH PANEL, IR, 24 V DC, 5.7", STNCOLOR, ETHERNET, RS232, CAN
Discontinued
Don't worry we have alternatives.
Discontinued
have alternatives.
Datasheets and Manuals
Product Information
Alternative Part Number: | Y7-139892 |
Manufacturer: | Moeller |
Pricing Unit: | Each |
Generic code: | MOEC |
GTIN/UPC/EAN: | 7640130090798 |
Product Details
Additional software components, loadable: | Yes |
Built-in depth: | 55mm |
Degree of protection (IP), front side: | IP65 |
ETIM Class: | Graphic panel |
ETIM Group: | PLC's |
Height of the front: | 156mm |
IO link master: | No |
Number of buttons with LED: | 0 |
Number of colours of the display: | 256 |
Number of function buttons, programmable: | 0 |
Number of grey-scales/blue-scales of display: | 0 |
Number of HW-interfaces industrial Ethernet: | 1 |
Number of HW-interfaces other: | 1 |
Number of HW-interfaces parallel: | 0 |
Number of HW-interfaces RS-232: | 1 |
Number of HW-interfaces RS-422: | 0 |
Number of HW-interfaces RS-485: | 0 |
Number of HW-interfaces serial TTY: | 0 |
Number of HW-interfaces USB: | 1 |
Number of HW-interfaces Wireless: | 0 |
Number of interfaces PROFINET: | 0 |
Number of online languages: | 100 |
Number of password levels: | 200 |
Number of pixels, horizontal: | 320 |
Number of pixels, vertical: | 240 |
Number of system buttons: | 1 |
Operation temperature: | 0 - 50°C |
Process default value (input) possible: | Yes |
Process value representation (output) possible: | Yes |
Radio standard Bluetooth: | No |
Radio standard GPRS: | No |
Radio standard GSM: | No |
Radio standard UMTS: | No |
Radio standard WLAN 802.11: | No |
Rail mounting possible: | No |
Screen diagonal: | 5.7inch |
Suitable for safety functions: | No |
Supply voltage DC: | 20.4 - 28.8V |
Supporting protocol for ASI: | No |
Supporting protocol for AS-Interface Safety at Work: | No |
Supporting protocol for CAN: | Yes |
Supporting protocol for Data-Highway: | No |
Supporting protocol for DeviceNet: | Yes |
Supporting protocol for DeviceNet Safety: | No |
Supporting protocol for EtherNet/IP: | Yes |
Supporting protocol for Foundation Fieldbus: | No |
Supporting protocol for INTERBUS: | No |
Supporting protocol for INTERBUS-Safety: | No |
Supporting protocol for KNX: | Yes |
Supporting protocol for LON: | No |
Supporting protocol for MODBUS: | Yes |
Supporting protocol for other bus systems: | Yes |
Supporting protocol for PROFIBUS: | Yes |
Supporting protocol for PROFINET CBA: | No |
Supporting protocol for PROFINET IO: | No |
Supporting protocol for PROFIsafe: | No |
Supporting protocol for SafetyBUS p: | No |
Supporting protocol for SERCOS: | No |
Supporting protocol for SUCONET: | Yes |
Supporting protocol for TCP/IP: | Yes |
Touch technology: | Infrared touch |
Type of display: | STN |
Useful project memory/user memory: | 64000kByte |
Voltage type of supply voltage: | DC |
Wall mounting/direct mounting: | No |
Width of the front: | 212mm |
With alpha numeric keyboard: | Yes |
With colour display: | Yes |
With message indication: | Yes |
With message system (incl. buffer and confirmation): | Yes |
With numeric keyboard: | Yes |
With printer output: | Yes |
With recipes: | Yes |
With SW interfaces: | Yes |
